Sentinel-2 NDWI extraction with AerEO

This chapter computes the Normalized Difference Water Index (NDWI) from Sentinel-2 L2A data. NDWI highlights open water features and is commonly used for water-body mapping:

\text{NDWI} = \frac{GREEN - NIR}{GREEN + NIR}

(1)

Like NDVI, NDWI is implemented as a preprocessor plugin, so the only change from the base Sentinel-2 config is the YAML preprocess block.

Environment setup¶

The first cell installs AerEO and any required plugins. If you are reading the rendered book or running on Binder, where the environment is already prepared, pip will report that the requirements are satisfied and skip the download.

# Install AerEO and any required plugins for this notebook (Google Colab)
!pip install -q "aereo[viz]"

Config used in this notebook¶

This notebook loads the job from config/job_sentinel2-ndwi.yaml. It extends job_sentinel2-ndvi.yaml (which itself extends job_sentinel2.yaml) and changes the preprocess stage to compute NDWI:

defaults:
  - job_sentinel2-ndvi
  - _self_

name: sentinel2_ndwi
target_bands: [green, nir]

preprocess:
  - _target_: aereo.builtins.ndwi
    _partial_: true
    ndwi_nir_band: nir
    ndwi_green_band: green

reproject:
  _target_: aereo.builtins.reproject_odc
  _partial_: true
reproject_mode: grid
resolution: 10

Because Hydra merges the defaults, all search, read, and write settings from the base Sentinel-2 job are reused unchanged.

# Download config files and AOIs from the GitHub repository so this
# notebook can run outside the repo (e.g. Google Colab).
import os
import urllib.request

GITHUB_RAW = "https://raw.githubusercontent.com/frandorr/aereo/main"

os.makedirs("config/aoi", exist_ok=True)

# Config files
urllib.request.urlretrieve(
    f"{GITHUB_RAW}/examples/config/job_sentinel2.yaml",
    "config/job_sentinel2.yaml",
)
urllib.request.urlretrieve(
    f"{GITHUB_RAW}/examples/config/job_sentinel2-ndvi.yaml",
    "config/job_sentinel2-ndvi.yaml",
)
urllib.request.urlretrieve(
    f"{GITHUB_RAW}/examples/config/job_sentinel2-ndwi.yaml",
    "config/job_sentinel2-ndwi.yaml",
)

# AOI files
urllib.request.urlretrieve(
    f"{GITHUB_RAW}/examples/config/aoi/chocon.geojson",
    "config/aoi/chocon.geojson",
)

Loading and running the job¶

ExtractionJob.load_from_config() resolves the merged config. The next cell then searches for assets, builds tasks, and executes them. Inside each task the pipeline is:

read (red, green, nir) -> preprocess (NDWI) -> reproject -> write GeoTIFF

Note that search and build_tasks happen before execution, via job.search() and job.build_tasks(assets), and are not part of the per-task pipeline.

from aereo.cache import TaskResultCache
from aereo.executors import LocalExecutor
from aereo.pipeline import ExtractionJob
from aereo.viz import plot_artifact_patches

# Load the job from the Hydra config package.
job = ExtractionJob.load_from_config(
    config_dir="config",
    config_name="job_sentinel2-ndwi",
)
assets = job.search()  # Use the search method from the job object to get the assets.
tasks = job.build_tasks(assets)

# now we create an Executor, in this case a LocalExecutor to run
# each ExtractionTask using Threads
local_exec = LocalExecutor(workers=-1, use_threads=True, cache=TaskResultCache())
# Extract!
print("Extracting...")
artifacts = job.execute(tasks, executor=local_exec)
print(f"✓ Extracted {len(artifacts.uri.unique())} artifacts")
print("Plotting...")

plot_artifact_patches(
    artifacts,
    ds_factor=1,
    cmap="RdBu",
    stretch="percentile",
    aoi=job.target_aoi,
    aoi_edgecolor="blue",
)

2026-07-08 14:49:17 [info     ] search_called                  provider=search_stac
2026-07-08 14:49:19 [info     ] build_tasks_start              assets=16 builder=build_grouped_tasks
Extracting...
2026-07-08 14:49:19 [info     ] execute_start                  executor=LocalExecutor task_count=8
✓ Extracted 56 artifacts
Plotting...

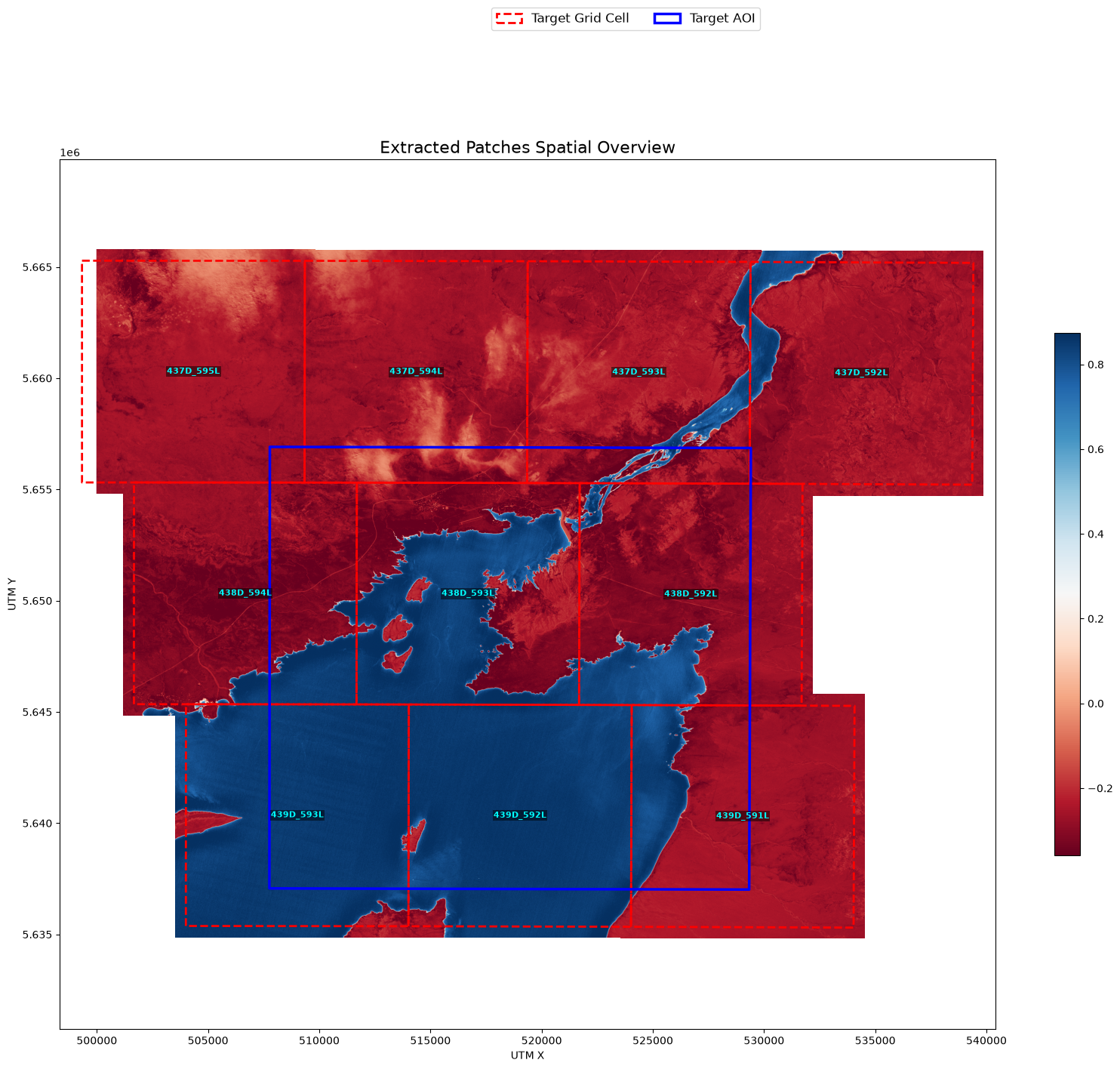

(<Figure size 2000x1495.93 with 2 Axes>,
 <Axes: title={'center': 'Extracted Patches Spatial Overview'}, xlabel='UTM X', ylabel='UTM Y'>)

Ignoring fixed y limits to fulfill fixed data aspect with adjustable data limits.
